Can I Install an Extractor Fan Myself? A DIY Guide for New Zealand Homes

Staring at that damp patch on your bathroom ceiling or trying to clear the smell of burnt toast from your kitchen is enough to make anyone want action. You see a simple box with a motor and some wires, and you think, "How hard can it be?" The short answer is: it depends entirely on where you put it and how you connect it.

In New Zealand, installing an extractor fan is a mechanical ventilation device designed to remove stale air, moisture, and odors from enclosed spaces like bathrooms and kitchens isn't just about drilling holes. It involves electrical work, building code compliance, and sometimes structural changes. If you get it wrong, you risk electric shock, poor airflow, or failing your next home inspection. But if you have the right skills, you can absolutely do it yourself and save a bundle on labor costs.

The Critical Decision: Venting vs. Recirculating

Before you buy a single screw, you need to decide what kind of system you are installing. This choice dictates the difficulty level and whether you need a professional electrician.

Recirculating fans are units that filter air through carbon filters and push it back into the room without external ducting. These are plug-in devices. You mount them under a cabinet or in a window frame, plug them into a standard power outlet, and you’re done. No wiring, no drilling through walls, no permits. They are great for rentals or quick fixes, but they don’t actually remove moisture from your house-they just mask the smell. For long-term health and mold prevention, these are rarely the best solution.

Exhaust fans are hardwired units that duct moist air directly outside the building envelope. This is what most people mean when they talk about proper ventilation. Installing one requires cutting a hole in the wall or roof, running insulated ductwork, and connecting to the mains electricity. This is where the DIY challenge begins.

Electrical Safety and the Sparky Rule

Here is the big question: Can you wire it yourself? In New Zealand, electrical work is strictly regulated by the Electrical Workers Registration Board (EWRB). Under AS/NZS 3000 is the Australian/New Zealand Standard for electrical installations, also known as the Wiring Rules, any new circuit or modification to existing wiring usually requires a licensed electrician to issue an Electrical Installation Certificate.

If you are simply replacing an old fan with a new one using the exact same wiring connections, and you are confident in your ability to turn off the power at the switchboard and test for dead circuits, many homeowners consider this "like-for-like" maintenance. However, if you are adding a new light switch, moving the fan to a different location, or tapping into a nearby power source, you likely need a sparky. Getting this wrong doesn’t just trip a breaker; it can start a fire or electrocute you.

• Safe DIY: Replacing an existing unit with identical voltage and wiring requirements.
• Requires Electrician: Installing a new circuit, changing voltage (e.g., 12V to 240V), or modifying the switchgear.
• Grey Area: Connecting to an existing junction box if you are not registered. Check with your local council or insurance provider first.

Choosing the Right Location and Ducting

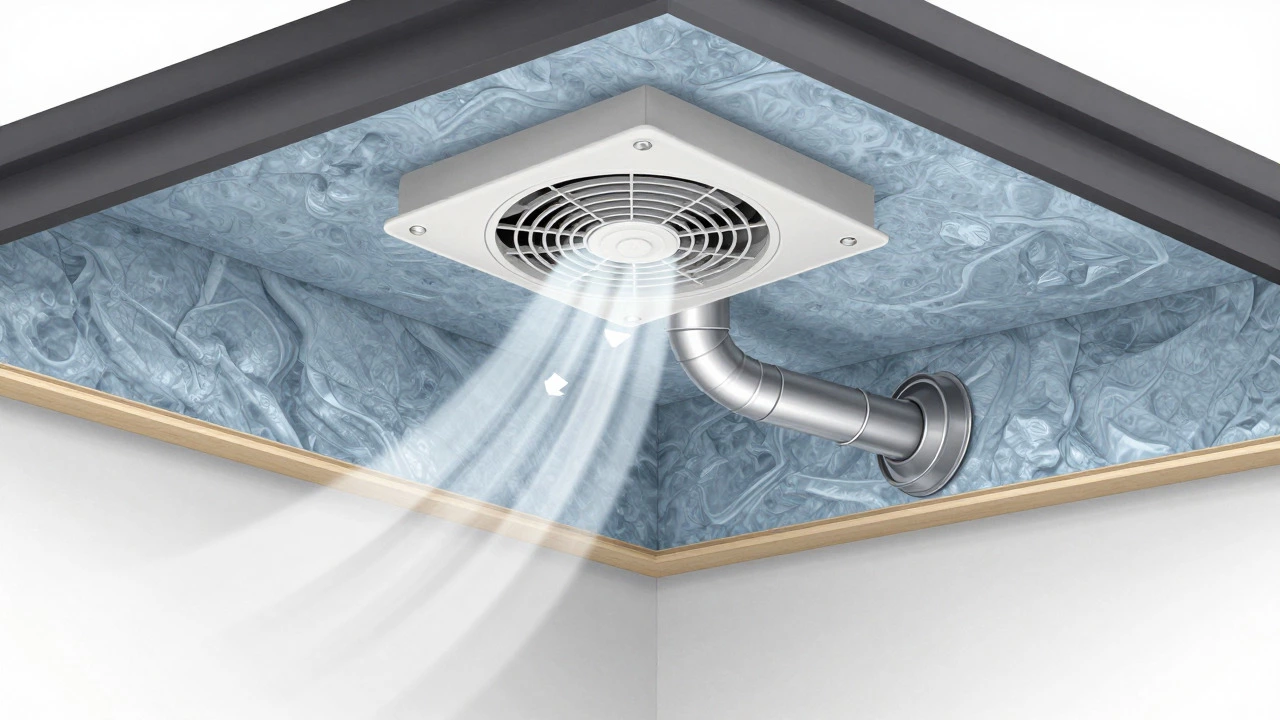

A powerful fan is useless if the air has nowhere to go. The placement of your ventilation duct is the pipe system that carries extracted air from the fan to the exterior of the building is critical. Air takes the path of least resistance. If your duct is too long, has too many bends, or ends in a blocked grille, the fan will struggle, making noise and wasting energy.

You should aim for the shortest, straightest route possible to the outside. Ideally, this means venting through an external wall rather than up through the roof, which adds complexity and potential leak points. The exit point must have a weatherproof cap with a bird mesh to prevent pests from nesting inside your ductwork.

Pay attention to the size of the duct. Most residential fans use 100mm or 125mm diameter pipes. Do not try to squeeze a large fan’s output into a smaller duct-it creates backpressure and reduces efficiency. Also, ensure the external grille is not placed near windows or air intakes for other rooms, or you’ll just suck the bad air right back in.

Step-by-Step Installation Process

If you’ve decided to proceed with a like-for-like replacement or a straightforward new install where you’ve handled the electrical side, here is how the physical installation goes down.

1. Mark and Cut: Measure carefully. Use a template if provided. Cut the hole in the ceiling or wall using a jigsaw or hole saw. Be mindful of joists and studs; you may need to move the location slightly to avoid hitting structural timber.
2. Install the Housing: Secure the fan housing into the cavity. Use the provided brackets or screws. Ensure it is level; otherwise, the cover won’t sit flush.
3. Connect the Ducting: Attach the flexible or rigid duct to the fan outlet. Seal all joints with aluminum foil tape-never use standard plastic duct tape, which degrades quickly. Run the duct to the exterior wall.

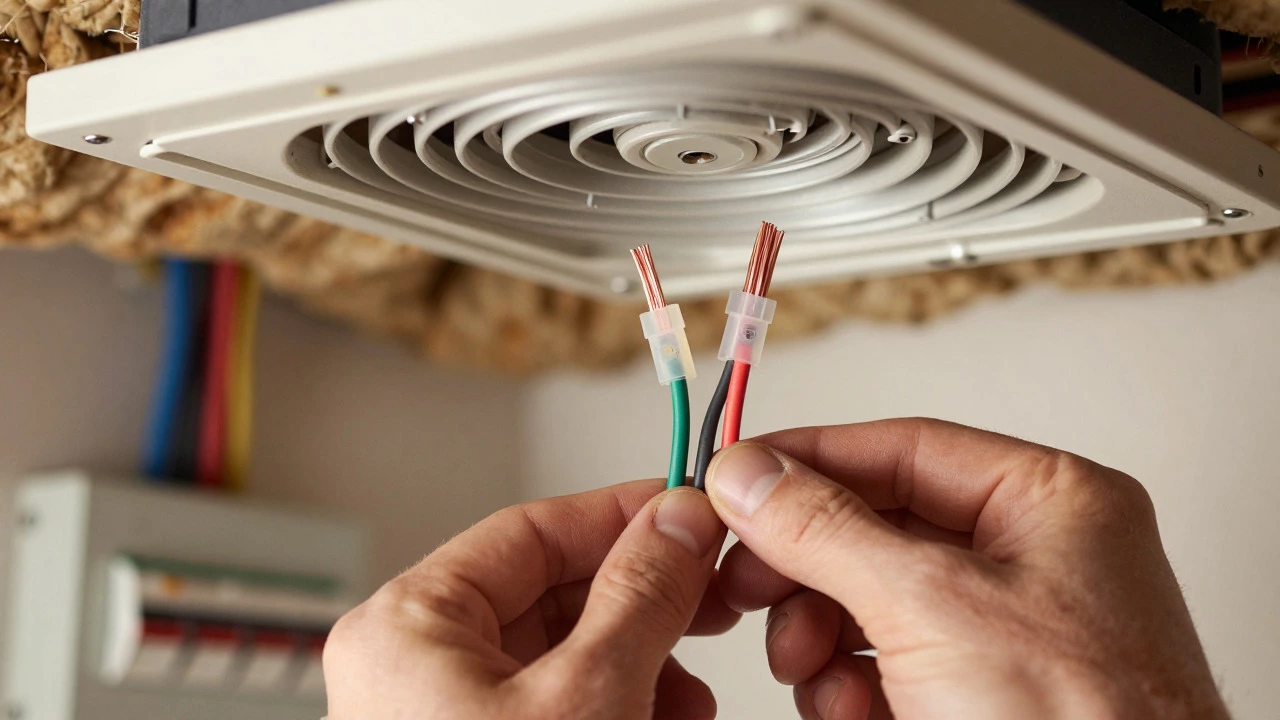

4. Wire the Unit: With the power OFF, connect the live, neutral, and earth wires according to the manufacturer’s diagram. Usually, this involves twisting wires together and securing them with wire nuts or Wago connectors. Connect the switch wire if applicable.
5. Mount the Cover: Attach the decorative grille or cover plate. Test the operation before sealing any plasterboard gaps.

Common Pitfalls to Avoid

I’ve seen plenty of DIY jobs go sideways because of small oversights. Here is what to watch out for:

• Ignoring Insulation: In colder parts of New Zealand, un-insulated ducts running through cold roofs can cause condensation inside the pipe, leading to dripping water and mold growth. Wrap your ducts in insulation sleeve.
• Wrong Wattage: Make sure the new fan matches the power rating of the old one, especially if it’s controlled by a dimmer or specific timer switch. Mismatched electronics can burn out the control module.
• Noisy Installation: If the fan vibrates against the wooden framing, it will sound like a jet engine. Use rubber isolation pads between the fan housing and the wood to dampen vibration.
• Blocking the Intake: Don’t mount the fan too close to a shower head or sink spray. Water droplets can enter the motor housing, causing premature failure. Keep it at least 1 meter away from direct water sources unless it’s rated for wet areas.

When to Call a Professional

Sometimes, saving money isn’t worth the hassle. You should hire a pro if:

• You need to cut through load-bearing walls or complex roof structures.
• The existing wiring is old, damaged, or unclear (blackened wires are a bad sign).
>You require a high-exchange rate fan for a commercial kitchen or a large industrial space.
• Your local council requires a building consent for the modification (common for major renovations).

Installing an extractor fan is a rewarding project that improves air quality and protects your home structure. Just respect the electricity, plan your ducting wisely, and don’t skimp on seals. Your lungs-and your paint job-will thank you.
